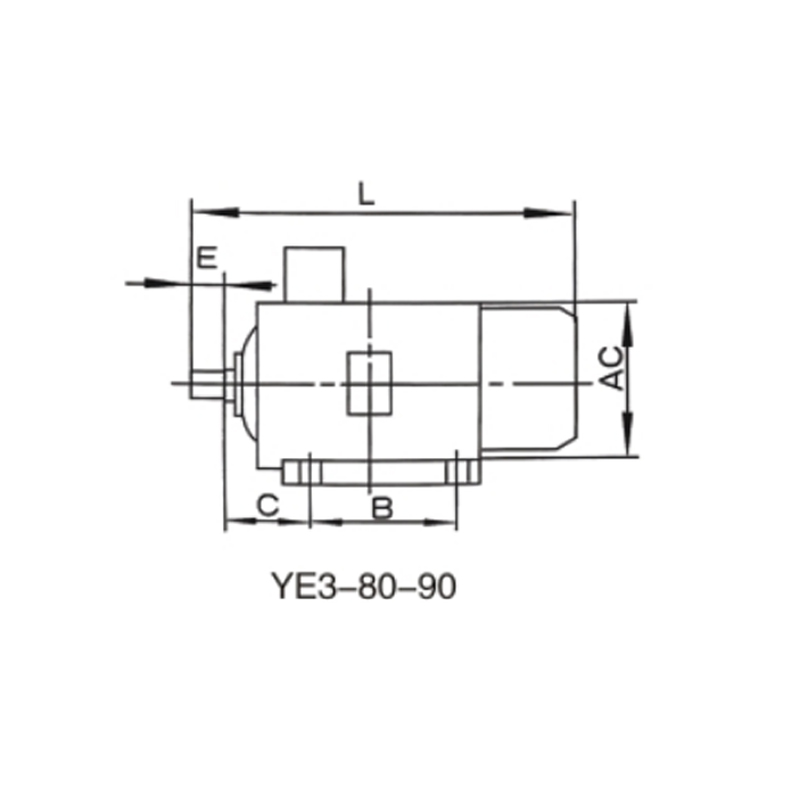

YE3-80-90

Frame with foot end shield without flange(B3)

For more information, please send an email or call our hotline

Frame with foot end shield without flange(B3)

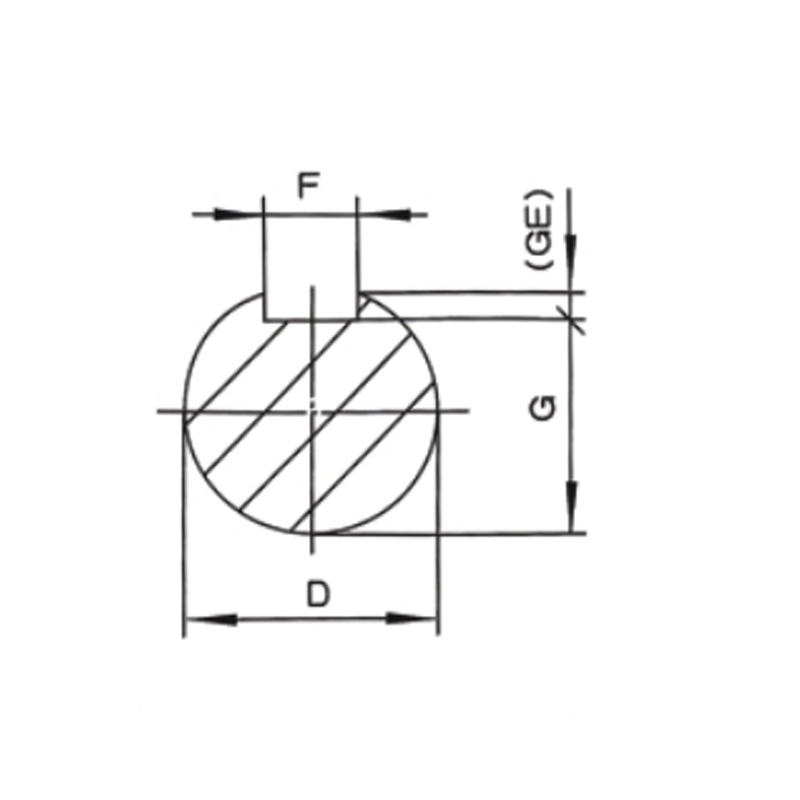

Frame	Ploes	A	A/2	B	C	H	K	D	E	F	G	AB	AC	AD	HD	L

80M	2.4.6.8	125	62.5	100	50	80	10	19	40	6	15.5	165	175	145	220	305
90S		140	70	100	56	90		24	50	8	20	180	195	165	260	360
90L				125												390
100L		160	80	140	63	100	12	28	60		24	205	215	180	270	435
112M		190	95	140	70	112						230	240	190	300	470
132S		216	108	140	89	132		38	80	10	33	270	275	210	345	510
132M				178												560
160M		254	127	210	108	160	14.5	42	110	12	37	320	330	255	420	730
160L				254												760
180M		279	139.5	241	121	180		48		14	42.5	355	380	280	455	740
180L				279												790
200L		318	159	305	133	200	18.5	55		16	49	395	420	305	505	790
225S	4.8	356	178	286	149	225		60	140	18	53	435	470	335	560	865
225M	2			311				55	110	16	49					865
	4.6.8							60	140	18	53					890
250M	2	406	203	349	168	250	24					490	510	370	615	915
	4.6.8							65			58
280S	2	457	228.5	368	190	280						550	580	410	680	985
	4.6.8							75		20	67.5
280M	2			419				65		18	58					1035
	4.6.8							75		20	67.5
315S	2	508	254	406	216	315	28	65		18	58	635	645	530	845	1180
	4.6.8.10							80	170	22	71					1290
315M	2			457				65	140	18	58					1210
	4.6.8.10							80	170	22	71					1320
315L	2			508				65	140	18	58					1210
	4.6.8.10							80	170	22	71					1320
355M	2	610	305	560	254	355		75	140	20	67.5	730	710	655	1010	1500
	4.6.8.10							95	170	25	86					1530
355L	2			630				75	140	20	67.5					1500
	4.6.8.10							95	170	25	86					1530
